Description

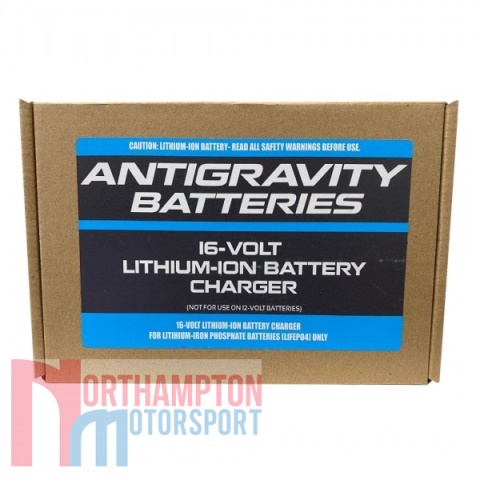

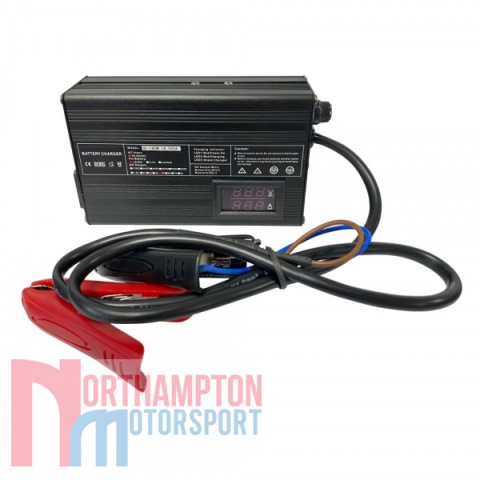

This is a solid, reliable 16-Volt Lithium Battery Charger from Antigravity batteries. it is suitable for any Antigravity Lithium 16v Battery such as the VTX20 Motorsport battery as well as the H6-30-16 Race Car / Truck battery. It will also work with other brands of 16-Volt Lifepo4 vehicle batteries. The Antigravity 16-Volt Charger works with 110 or 220 voltage and comes with a 3 Pin UK Plug fitted.
Please note: Never use a 16-Volt Lithium Battery Charger on a 12v Battery, nor a 12v Charger on a 16v Battery. Use this charger only with 16v Lifepo4 Lithium Motorsports Batteries.
Features
- Advanced high frequency switching mode power supply technology
- DC output isolated from AC input
- Single Input ll0Vac and 230Vac or Universal Input 110/230Vac, 50Hz-60Hz
- Charging parameters are insensitive to the AC input line voltage variations
- Completely automatic battery charging: CC, CV
- Two LEDs: LED1 indicates Power On or Off. LED2 indicates Charging/Charged
- LED SCREEN indicates charging Voltage and Current
- Short-circuit, over-voltage, over-temperature, reverse-polarity protections
- Efficiency > 85%
- Forced ventilation with fans
- 100% full load burn-in test
Operation
- Connect the Charger to the Wall Outlet/Power Supply
- Connect the Charger to the Battery making sure Polarity is correctly connected to the Battery
- Red Clamps to Positive (+) Battery Connection
- Black Clamps to Negative (-) Battery Connection
- LED1: indicates the Charger is plugged in. RED LED confirms the AC power is on
- LED2: Green confirms the Charger is connected. FLASHES Red/Green when charging
- LED2: will show GREEN SOLID LED when the battery is fully charged
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
