Description

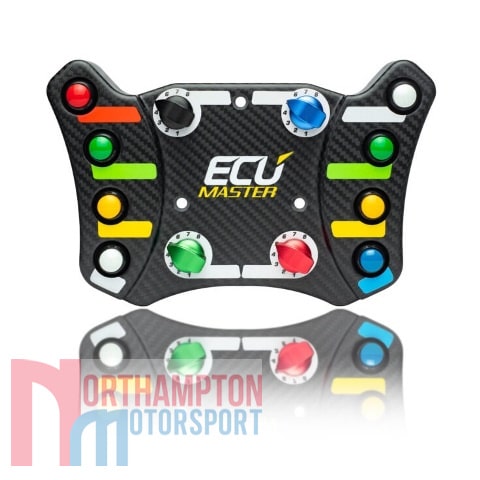

The ECUMaster RF Steering Wheel Panel offers a professionally designed control interface that allows for customizable controls based on individual preferences.
Its carbon housing and ergonomic design offers enhanced usability and features eight momentary push button switches (OTTO) and four 8-position rotary switches. In addition to this, there are two spare switch inputs that can be used for shift paddles or other functions.
The panel utilizes a CR2450 battery with minimal power consumption, lasting over 1.5 million button presses at room temperature. Battery level is transmitted through the CAN bus, with a low battery warning LED included on the receiver.
With only four terminations (12v power, ground, CAN Hi, CAN Lo), the wiring process is very simple.
The panel is also compatible with the popular 6 x 70 mm steering wheel bolt pattern and can be directly integrated with other CAN-bus devices using the same message format as the ECUMaster CAN Switch Board V3.
ECUMaster RF Steering Wheel Panel Specification:
Specification
- Wireless RF transmission immune to all interference in the car
- 8 Push button switches
- 4 Rotary switches
- 2 Connectors for paddle shifts
- Low power consumption (tested for over 1.5 million button presses at room temperature)
- CR2450 battery
- Battery level transmitted over CAN-bus
- Bespoke carbon case
- Direct integration with other CAN-bus devices as a CAN Switch Board V3
What's Included?
- ECUMaster Wireless Steering Wheel Panel (x1)
- ECUMaster RF Receiver (x1)
- Threaded Mounting bolts with different lengths (3 × 30mm, 3 × 55mm, 3 x 65mm)
- Mounting screws (x3)
- 4 Position DTM Connector (x1 with terminals)
- Sticker/label sheet (x1)
User Manuals
Wireless Racing Panel User Manual
Wireless Racing Kit User Manual
Estimated dispatch time within 3 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
