Description

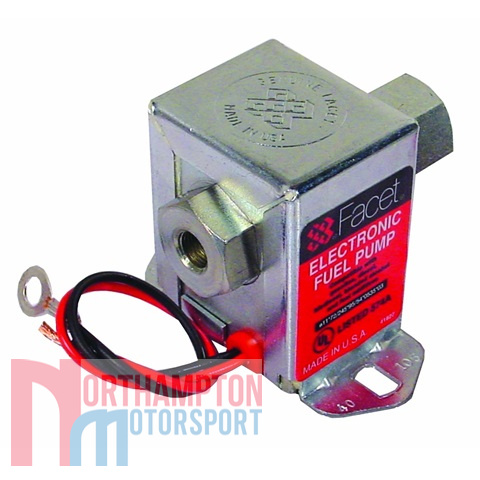

The Facet 40147 is high quality, self-priming solid state electronic fuel pump rated between 7 and 10 PSI.
These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a dry lift capacity of 120 inches. Two universal models provide complete coverage for all low and high-pressure carburettor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.
Specification
- Pump: Facet 40147
- Voltage: 12v
- Earth: Neg
- Pressure: 7.0 to 10.0 PSI
- Flow: US Gallons/Hr 34
- Dry Prime Height in Mtrs: 0.3
- Thread Size: 1/8th npt
- Average Run Time or MTBF: 6000 hrs
- Positive Shut-Off Valve: No
- Check Valve: No
- Operating Temperature: -40º F to +180° F
- Legal Requirements: Certified & Complies With EEC 95/54 Requirements
Physical
- Length: 75mm
- Height: 60mm
- Weight: 0.5kg
Please Note: When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal. The Facet 40147 Solid State Fuel Pump is not suitable for use in the aircraft industry.
Estimated dispatch time within 5 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
