Description

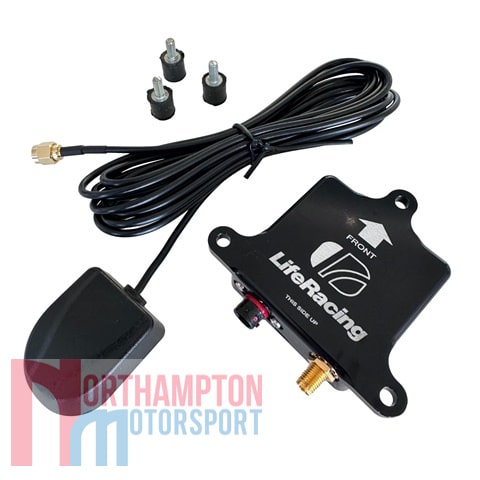

The Life Racing GPS-AG50-AV is a compact low mass unit capable of tracking vehicle speed by GPS position at 50Hz. It features a built-in 6-axis motion pack for measuring lateral, longitudinal and vertical acceleration as well as roll, pitch and yaw rates. The module connects to any device via the CAN network.
This GPS module comes supplied with the Life Racing Remote GPS Aerial. This allows for optimal mounting in the chassis of the sensor package whilst at the same time allowing optimal GPS aerial positioning for optimal coverage. It also comes supplied with AV mounts for installation.
Please note: The CON-A08 GPS Connector Kit is required for installation which is available separately.
Life Racing GPS-AG50-AV Specification:
GPS
- Up to 50Hz update rate
- SBAS (WAAS/EGNOS) correction
- Accurate to within 2.5m
- Stores local satellite information for under 3s “hot start”
Motion Sense
- 3-axis accelerometer up to ±16G
- 3-axis gyroscope up to ±1000deg/s
- High frequency internal sampling and filtering
- Software programmable filter cut off frequencies (5-50Hz)
- 100Hz CAN transmission rate
Interfaces
- CAN 2.0B
- Configurable frame identifiers
Power Supply
- 6V to 28V DC
Physical
- 6way Deutsch Autosport connector
- CNC machined, black anodized aluminium case
- 73mm (W) x 68.6mm (L) x 19mm (D) which includes the connectors and mounting tabs
- Operating temperature -25 to +85°C
- Sealed to IP67
- Total Mass 65 grams
Warranty and Servicing
This equipment comes with a 1 year warranty against manufacturing defects and failures however misuse or damage will not be covered under warranty.
CAN Output Description
CAN Output Description
Download Files
GPS-AG-50 Data Sheet
Estimated dispatch time within 5 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
