Description
The Life Racing PDUX3B-AS (24V / 350A) comes equipped with an impressive 34 programmable outputs in total, including 10 extremely capable multifunction outputs which can be defined by the user to operate in either discreet high-side, low-side switching, high-side PWM, Half or Full bridge operation. These flexible outputs, as well as the PDU’s 16 input channels and additional 4 low-side PWMs, can be used to expand and enhance the I/O configuration of any Life Racing ECU. A feature and build-time-choice option are available for an internal IMU and two-wire wheel speed interface respectively.
The Life Racing PDUX3B-AS (24V / 350A) Specification:
Features
- Schematic based calibration including logic simulation tool.
- Custom CAN across 3 buses including mux frames and retransmission (gateway) features, configured with a graphical display and import/export tool.
- Low power state woken on either a physical input, CAN activity or specific CAN frame
- Configurable evaluation frequency operation of schematic components in circuitry – “Expert Frequency Mode”.
- Optional internal IMU (Inertial Measurement Unit) feature offers a six-axis gyro and accelerometer which can be processed internally or transmitted over CAN.
Outputs
- 34 Main Power Outputs:
- 10 Multifunction outputs configurable as either half-bridge, high side, low side, high side PWM (100Hz-20kHz) outputs. (25A continuous, soft-start inrush limiting 60A, hard-start inrush 60A)
- 10 High side, two of which can be high side PWM (100Hz-20kHz) outputs. (25A continuous, hard-start inrush 60A)
- 14 High side, eight of which can be high side PWM (100Hz-20kHz) outputs. (15A continuous, hard-start inrush 30A)
- Output linking (‘teaming’) to support very high current devices.
- Four additional low side outputs with configurable PWM (10Hz-10kHz).
- All outputs short circuit and thermally protected with multi-stage in-rush control.
- All outputs additionally protected by physical fuses as required by worldwide regulations.
- Combined diagnostic output with reset input.
- 128 Scalable CAN (‘soft’) outputs.
- Custom CAN datastream– i.e., customisable channel current, channel state and device information
Inputs
- 16 physical switch or 0-5Vinputs, including software selectable 3k ohm pull-up resistors
- 4 x inputs capable of programmable “wake up” functionality
- Comparing and manipulating real numbers (floating point decimal) in schematic
- Analogue inputs can be linearised, viewed as raw voltage or Boolean value
- Dedicated wake pin
- 128 CAN ‘soft’ inputs with configurable scaling, validation and debounce time
Interfaces
- 2 x 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
- 3 x CAN 2.0B – fully flexible
- Option for galvanically isolated CAN bus (custom projects only)
- RS232C serial interface (custom projects only)
- LIN Bus (custom projects only)
Power Supply
- 5V to 20V Supply voltage (24V / 350A)
- Dedicated logic power input
- Regulated 5V sensor supply output with short circuit protection
Available Variations
- 5V to 20V Supply voltage (12V / 200A)
- 5V to 20V Supply voltage (12V / 350A)
- 5V to 30V Supply voltage (24V / 200A)
- 5V to 30V Supply voltage (24V / 350A)
Physical
- Three Autosport connectors with a total of 122 pins
- Amphenol SurLok Power Stud
- Machined Aluminium enclosure
- 210 x 130 x 57 mm (including connectors)
- 1090 Grams
- Operating Temperature: -40C to +85C
Download Files
PDUX3B-AS Datasheet (v1.4)
Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:
Estimated dispatch time within 5 working days.

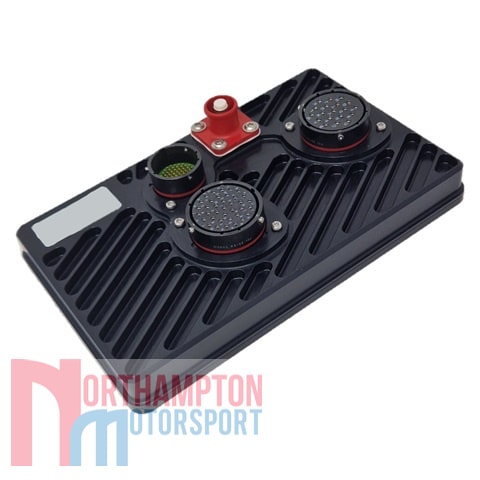

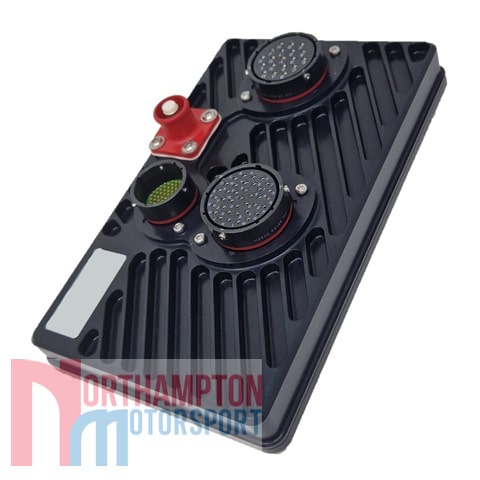

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
