Description

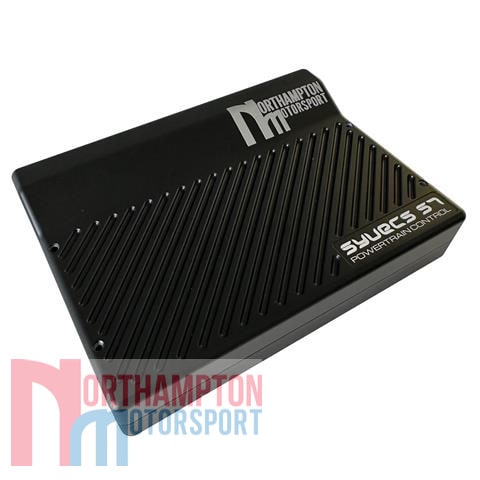

The Syvecs Honda Civic Type-R (EP3) Plug in ECU Kit is a standalone engine management system suitable for EP3 models (2001 / 2006). This plug and play ECU kit brings a new level of engine management control to the Civic Type-R range.
By simply plugging in the ECU kit, a whole new level of control is available allowing some of the following features:
Syvecs Honda Civic Type-R (EP3) Features:
- Flat Shifting.
- Rolling Anti-lag / Pit lane limiter strategies.
- 8 x switchable maps with the ability to select desired engine map, boost level, traction and launch control levels through steering wheel buttons.
- Control up to 4 additional injectors for high power installations where staged injection may be required.
- Adjustable Knock control.
- Cruise Control.
- Live Tuning of every aspect of the engine’s calibration.
- Adjustable traction control strategies based on lateral G and individual wheel speed monitoring.
- Adjustable Launch Control.
- Full Variable Valve Timing control.
- Vtec Control.
- Flex Fuel control.
- Fully functional with every other ECU on the car.
- Closed loop Lambda Control.
- Fully adjustable closed loop boost control with launch level adjustments and trims for turbo speed, air charge, engine coolant temp, exhaust gas temps etc..
- Built in data logging using a market leading analysis software of up to 8 hours, with data rates at up to 1000hz.
- Antitheft and valet modes.
- Super fast connection via RJ45 Ethernet port for live tuning anywhere in the world or even remotely if on track if connected to a wireless unit.
- Configurable Engine Safety Trips on all important parameters like oil temperature, oil pressure.
- Fuel pump control of both main, and sub pumps, as well as Relative fuel pressure monitoring and limiting in the event of fuel pressure dropping on boost.
- 4 different Pedal to Throttle Angle maps with multipliers for different parameters e.g. speed. Again adjustable via steering wheel buttons.
- Configurable individual cylinder closed loop knock control, to suit any cylinder modification with adjustments to frequency, windows for listening and gains for each cylinder. Ability to trigger full cylinder shutdown in severe knock conditions.
- Run up to 7bar map sensors.
- Control high or low impendence injectors.
- Ability to fit any type of external sensor to monitor and trigger safety trips from anything from crank case pressure to damper position.
- Ability to use any size DBW throttle body e.g. Chevrolet LS7.
- Wet and Dry nitrous control with ability to drive solenoids directly and control n20 heaters via pressure monitoring.
- Ability to control any external vehicle features based on sensor inputs e.g. Adjustable rear wing linked to G force or exhaust control valves.
- Connect any race series dash or even one of Syvecs partners’ Touchscreen CANBUS adjustment /display units.
- View any input live with built in scope up to 1000hz.
- And much, much more!
Estimated dispatch time within 5 working days.
Picture for illustration purposes only. Actual parts may differ slightly in appearance.
