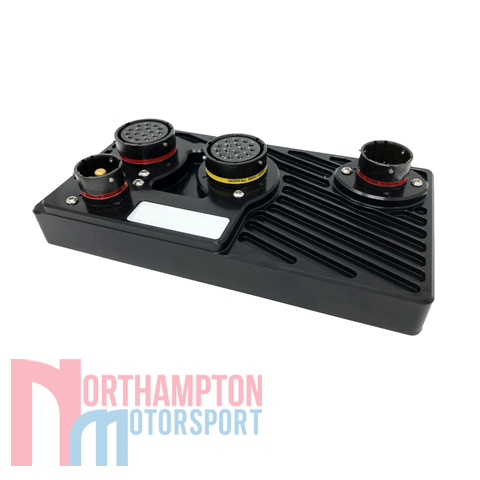

Syvecs PDU34A Power Distributor Unit (PDU)

Syvecs PDU34A Power Distributor Unit (PDU)

£3,344.00 (+VAT)

The Syvecs PDU34A Power Distribution has been designed to replace the use of a conventional relay box. It provides multi channel solid state logic driven processing, which is fully software configurable using the Syvecs PDU Cal tool. Features include logic inputs and power outputs with validation and debounce settings. RS232 and CAN provide communication to external displays and data loggers.

SKU: SYV-PDU34A Category: Tags: , ,

Description

The PDU34A from Syvecs offers advanced features such as the ability to sleep and wake via CAN bus messaging or by using hardware input pins as triggers. It also comes equipped with an impressive 34 programmable outputs in total, including 10 extremely capable multifunction outputs which can be defined by the user to operate in either discreet high-side or low-side switching, low-side PWM, Half or Full bridge operation. These flexible outputs, as well as the PDU34’s 16 input channels, can be used to increase the I/O compliment of our S7, S8 and S12 ECU’s connected using our extremely fast slave link Canbus to drive engine control solenoids or actuators.

Syvecs PDU34A Power Distributor Unit full Specification:

Features

  • Schematic based calibration including logic simulation tool
  • Low power state woken on physical input, CAN activity, or specific CAN frame

Outputs

  • 34 Main High Side Power Outputs:
    • Outputs 1-10 are Multifunction high side, low side, PWM, H-Bridge, soft start outputs (peak current 100A)
    • Outputs 10-30 are High Side outputs (peak current 125A)
    • Output teaming to support very high current devices
    • 4 x Low Side Outputs (peak current 8amps)
  • All outputs short circuit and thermally protected with multi-stage in-rush control
  • Combined diagnostic output with reset input
  • Up to 64 soft outputs via CAN

Inputs

  • 16 physical switch inputs or, when slaved, general purpose analogue sensor inputs including:
    • 8 x frequency measurement inputs (4 optionally bi-polar)
    • Software selectable 3k ohm pull-up resistors
    • 4 x inputs capable of programmable “wake up” functionality
  • Dedicated wake pin
  • Up to 64 soft inputs via CAN with configurable validation and debounce time

Interfaces

  • 2 x 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
  • 3 x CAN 2.0B
  • RS232C serial interface
  • LIN Bus

Power Supply

  • 6.5V to 40V input voltage
  • Dedicated 12V logic power input
  • Regulated 5V sensor supply output with short circuit protection

Physical

  • 2 x Deutsch 16 way Power Connectors
  • 1 x Deutsch 32way Connector
  • 1 x M6 Power Stud
  • Machined Aluminium enclosure
  • 995g
  • Operating Temperature -20 to +85C

Technical Drawing

syvecs_pdu341_power_distribution_unit_pdu_data_sheet

PDU34A Data Sheet
